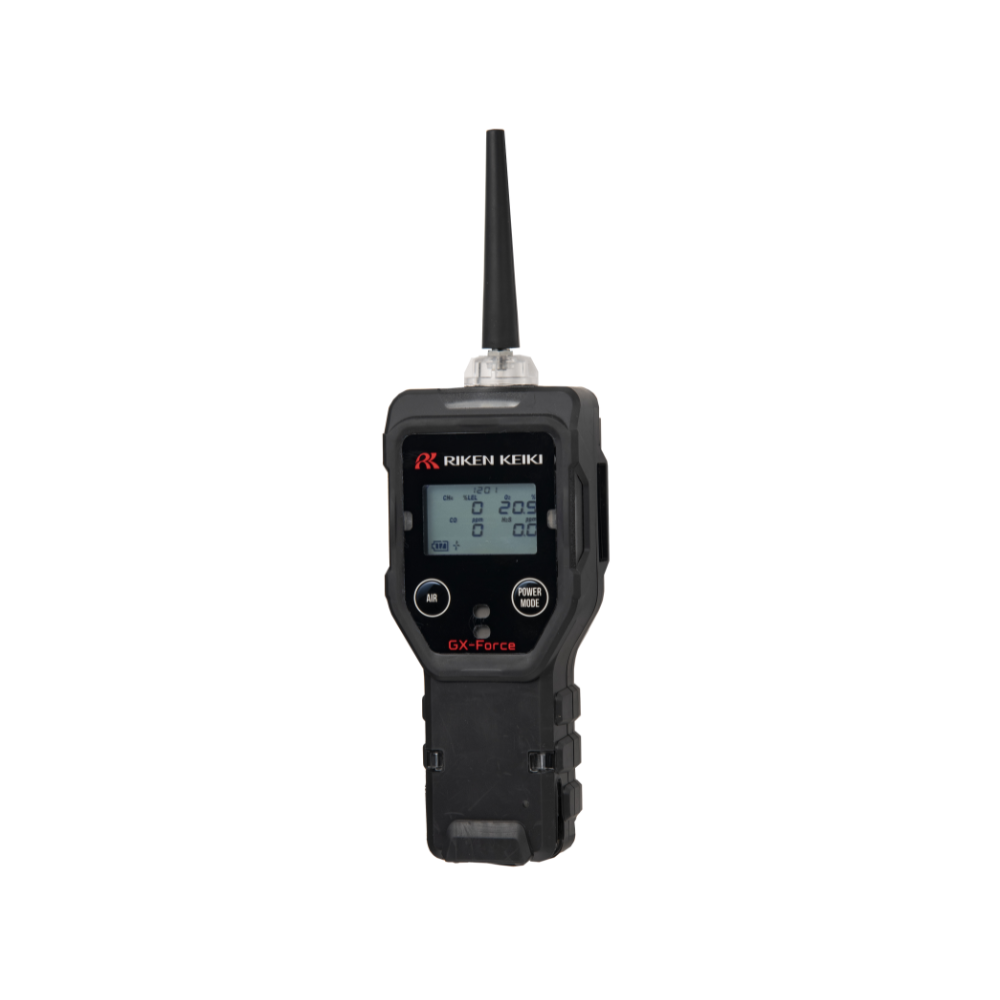

GX Force Portable Four Component Gas Detector

  • Lightweight design weighing approximately 300g with an easy-to-grip grip design
  • 3-year sensor warranty
  • Continuous use time Approx. 30 hours
  • Cleared 3m drop test
  • Explosion-proof and explosion-proof construction
  • Protection class IP67 equivalent
  • Lightweight design weighing approximately 300g with an easy-to-grip grip design
  • 3-year sensor warranty
  • Continuous use time Approx. 30 hours
  • Cleared 3m drop test
  • Explosion-proof and explosion-proof construction
  • Protection class IP67 equivalent

Category

Portable Gas Detector

Type

Multi-Gas

Detection Gas

CH4, CO, H2S, i-C4H10, O2

Principle of Detection

New Ceramic catalytic Method, Potentiostatic Electrolysis Method

Detection Range

0 to 100% LEL(HC/CH4)
0.0 to 25.0 vol%(O2)
0 to 500 ppm(CO)
0.0 to 30.0 ppm(H2S)

Sampling Method

Suction type/Double type

Type of Alarm

Gas Alarm/ Fault Alarm

Display of Alarm

Blinking lamp / buzzer continuous modulated sound / gas concentration display blinking / vibration

Explosion Protected Construction

Flameproof enclosures + Intrinsic safety

Explosion- Proof Class

IECEx : Ex da ia IIC T4 Ga
ATEX : Ⅱ1G Ex da ia IIC T4 Ga

IP Rating

IP67

Approvals

Japan Ex, ATEX, IECEx, China Ex, EN 60079-29-1, EN 50104, JIS

Power Source

Lithium-ion rechargeable battery unit

Battery Life

Approx. 30 hours (25℃, fully charged, no alarm, no lighting)

Dimensions

Approx. 64 (W) × 173 (H) × 47 (D) mm (excluding projections)

Weight

Approx. 300 g

Operating Temperature Range

Temporary ambient conditions : -40 ℃ to +60 ℃ (no sudden changes)
Continuous ambient conditions : -20 ℃ to +50 ℃ (no sudden changes)

Operating Humidity Range

Temporary ambient conditions : 0 to 95 %RH (no condensation)
Continuous ambient conditions : 10 to 90 %RH (no condensation)
