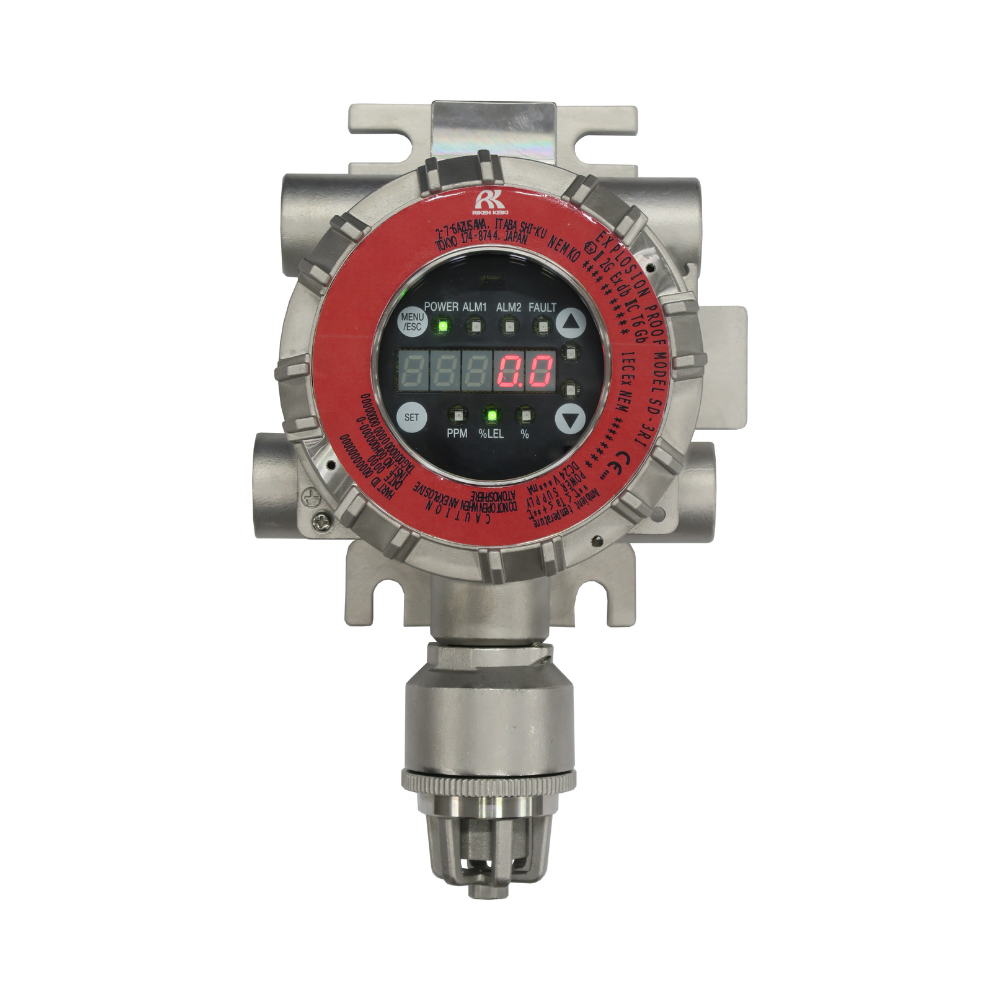

SD-3 Series Gas Detector with Signal Converter
- Next generation high performance sensor “F Sensor Series” is installed, greatly improving both functions and performance.
- Complies with different global standards (including planned certifications).
- Wide range of output options.
- Rugged housing construction allows use even in harsh environments.
- Wide range of types to suit a variety of uses and installation environments.
- Next generation high performance sensor “F Sensor Series” is installed, greatly improving both functions and performance.
- Complies with different global standards (including planned certifications).
- Wide range of output options.
- Rugged housing construction allows use even in harsh environments.
- Wide range of types to suit a variety of uses and installation environments.
| Category | Fixed Gas Detector |
|---|---|
| Type | Single Gas |
| Detection Gas | Combustible Gas/Toxic Gas/ Oxygen; |
| Principle of Detection | Non- Dispersive Infrared type, Semiconductor Type, New Ceramic Type, Hot-Wire Semiconductor Type |
| Principle of detection | Electrochemical type |
| Detection range | Depends on detection target gas |
| Sampling Method | Suction type/Single type, Diffusion type/Single type |
| Type of Alarm | Gas Alarm/ Fault Alarm |
| Display of Alarm | 7-segment LED (5 digits) and 3-color lamps (red/green/yellow |
| Explosion Protected Construction | Flameproof enclosures |
| Explosion- Proof Class | IECEx : Ex db ⅡC T5/T4 Gb ATEX : Ⅱ2G Ex db ⅡC T5/T4 Gb |
| IP Rating | IP66/67 |
| Approvals | Japan Ex, ATEX, IECEx, China Ex, SIL, EN 60079-29-1, FM |
| Power Source | 24 VDC (18 to 30 VDC) |
| Approvals | Japan Ex, ATEX, IECEx, China Ex, SIL, EN 60079-29-1, FM |
| Warning | Sensor life assessment / Clock abnormality diagnosis/ communication diagnosis/ sensor warning |
| Weight | Approx. 6.7 kg (SD-3NC) Approx. 7.0 kg (SD-3DNC) |
